Polyester and Polyamide Printing Screen

Polyester Printing Screen

Polyester was introduced to the screen printing market over 40 years ago and quickly replaced traditional silk as the fabric of choice among screen printers all over the world. It is a material that is uniquely suitable for screen printing because of its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. Polyester screen is a kind of synthetic fabric constructed similar to silk, yet with better uniformity. Compared to silk, polyester screen cloth offers extreme durability, yet has a lower price.

General Specification of Polyester Mesh: We provide polyester mesh for screen printing with a mesh variety of 60mesh/ inch,80mesh, inch 100mesh/ inch,110mesh/ inch,120mesh/ inch,135mesh/ inch,160mesh/ inch,180mesh/ inch,200mesh/ inch,230mesh/ inch,250mesh/ inch,280mesh/ inch,305mesh/ inch,355mesh/ inch,380mesh/ inch,420mesh/ inch.

Width of polyester printing mesh:

Max. width: 3200mm.

We may also take orders to produce polyester fiber mesh with other special requirements.

Polyamide Printing Mesh

Specification of Polyamide Mesh for Sreen Printing : 60mesh/ inch,80mesh, inch 100mesh/ inch,110mesh/ inch,120mesh/ inch,135mesh/ inch,160mesh/ inch,180mesh/ inch,200mesh/ inch,230mesh/ inch,250mesh/ inch,280mesh/ inch,305mesh/ inch,355mesh/ inch,380mesh/ inch,420mesh/ inch.

Width of polyamide fabric for screen printing:

Max.width: 3200mm.Width may varies according to the requirements of customers.

We may also take orders to produce polyamide fabric for screen printing with other special requirements.

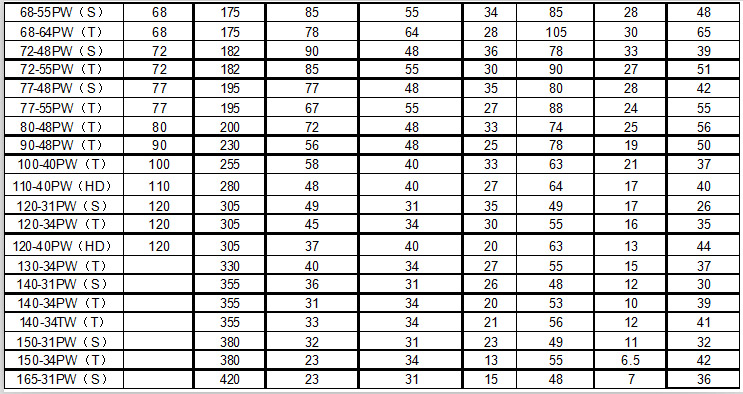

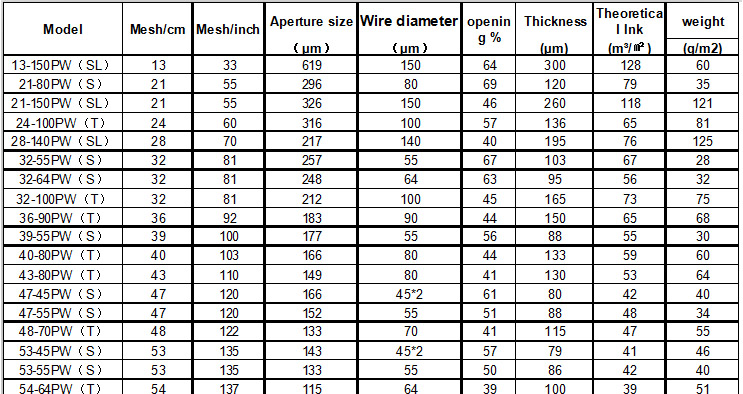

Detail Specification of Polyester and Polyamide Printing Mesh

Detail Specification of Polyester and Polyamide Printing Screen

Application:

The products are widely used in the printing plate electronics, textiles, ceramics and other industries  and the melt filtration of the aviation, aerospace, petrochemical, and other high-tech fields
