Knitted wire meshKnitted wire mesh: , also known as, Gas-liquid filter/mesh,steam fluid strainer mesh, vapor-liquid filter/mesh and so on.
Common materials for the knitted wire mesh
a. Stainless steel: 304, 304L, 321, 316Ti, 316L, RS-2, NS-80, 317L, 904L, 310S
b. Titanium and titanium alloys: pure titanium TA2,TA1,TA3 and titanium alloys TA4, TA5, TA6, TA7, TA8.
c. Nickel and nickel alloys: pure nickel N6, Ni200, Ni201and Hastelloy C-276.
d. B-2; Inconel 601,625; Incoloy825; Alloy800,800H ; Monel400.
e. Super Duplex Steel: 2507(S32750) 2507(UNS S32750).
f. Engineering Plastics: PP, PE, PVC, PTFE(F4), FEP(F46), PVDF(F2).
g.Glass fiber, cotton, chemical fiber.
h. Iron wire, copper wire ect.

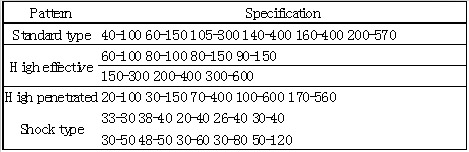

Specifications of the knitted wire mesh:
Standard of the knitted wire mesh of shangHai Q/SG12-1-79
Standard of the knitted wire mesh of shangHai Q/YSZZ-88-91

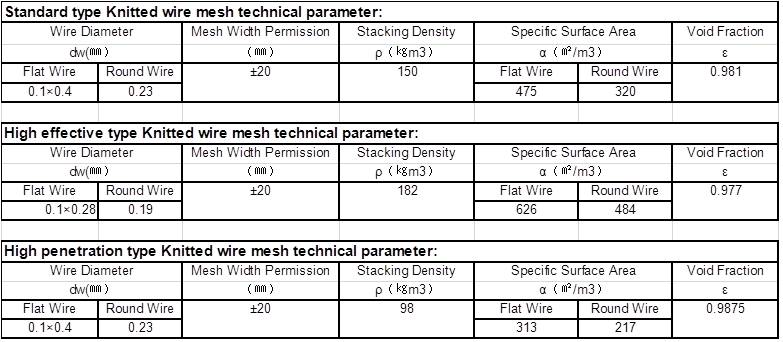

Technical Parameter of three types:
Forms of knitting of the mesh:
SP standard wire size 0.1*0.4/φ0.23 | DP standard wire size 0.1*0.3/φ0.23 | HRHP standard wire size φ0.23 (φ0.275).1*0.4mm |
Applications of knitted wire mesh:

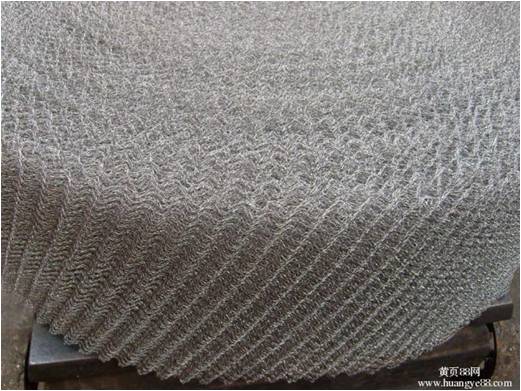

a. Production of demister filter pad.
b.Vapor-liquid separation, gas and water separation, oil-water separation filter.
c. Air filter on the engine of cars, tractors and so on.
d. Parts in sealed, damping (shock), silencers and exhaust purification element.
e. Anti-electromagnetic interference shielding device made of high conductivity wire for the electronics, electrical products.
