Gabion Mesh

Gabion Mesh

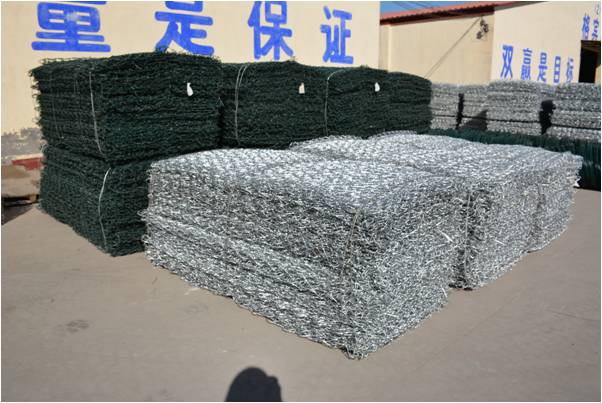

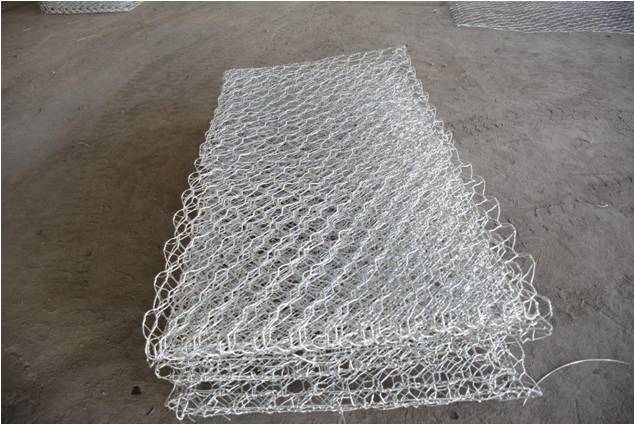

Gabion is an element in the form of blocks made of wire mesh nettings of twisted hexagonal opening or welded square or rectangular openings, which is filled with natural stone for river, hill protection or construction.

Material: Low-carbon steel wire , stainless steel wire

Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Gabions are mainly made of four types of materials:

(1)Galvanized steel wire: Excellent low-carbon steel wire, diameter: 2.0mm-4.0mm, tensile strength: no less than 380Mpa. The surface adopts hot galvanization for protection. The depth of the protective galvanized layer (max. 300g/m2) is decided according to customer demands.

(2)Zinc-5% aluminum-mixed mishmash alloy steel wire: (also called galfan steel) a new kind of material appearing recently with corrosion resistance 3 times of traditional pure galvanization; diameter: 2.0mm-4.0mm; tensile strength: no less than 380Mpa.

(3)Galvanized steel wire with plastic coating: Excellent low-carbon steel with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it merge into the surrounding environment.

(4)Zinc-5% aluminum-mixed mishmash alloy steel wire: alloy steel wire with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it to merge into the surrounding environment.

Weaving of Gabions:

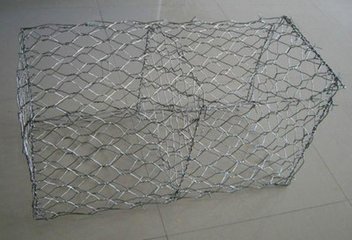

I.Gabions are molded once. Except cover plates, the edge plates, end plates and bottom plates are inseparable. Length/width tolerance (±5%) height tolerance (±5%). The interior part is isolated into independent units by adopting clapboards every other 1m.

II.Gabions adopt assembly mode. The cover plates, the edge plates, end plates and bottom plates are separately assembled into cages wound by spiral steel wire. All the edge wire of the cage adopts thick wire to improve the strength of the gabions.

We have a wide production of the specification, and we can produce the gabion mesh according the requirements, our common specification as follows:

Diameter: 2.2, 2.5, 2.7,3.0mm

Mesh size(cm):6*8, 7*9,8*10,9*11,10*12,11*13,12*14,*****22*24, and the mesh size 8*10, 10*12 are main for export.

Applications:

Gabions are mainly used in the following fields:

a. Building blocks of gravity walls

b. Forming of gravity walls

c. Reinforced structure (a combination of reinforcing wire mesh containers)

d. Control and guide of water or flood

e. Flood bank or guiding bank

f. Preventing of rock breaking

e. Water and soil protection

f. Bridge protection

e. Strengthening structure of soil

f. Protection engineering of seaside area.
